Basic Control's UWM-1 series ultrasonic water meter is a flow measuring equipment which uses

transient time ultrasonic signal to continuously measure, record and display flow rate of the measuring medium.

Features :
Temperature rating: T90
Not influenced by medium impurities, chemicals or magnetic interference;
No moving parts, no wear and tear and the accuracy of measurement is not influenced by the time duration of use;
Can be installed in horizontal or vertical positions;
Minimal pressure loss;
Uses GermanGP2 time detection chip, time measurement accuracy of 50 picoseconds.
Accord with GB/T778-2007<Measurement of water flow in fully charged closed conduits-Meter for cold potable water and hot water

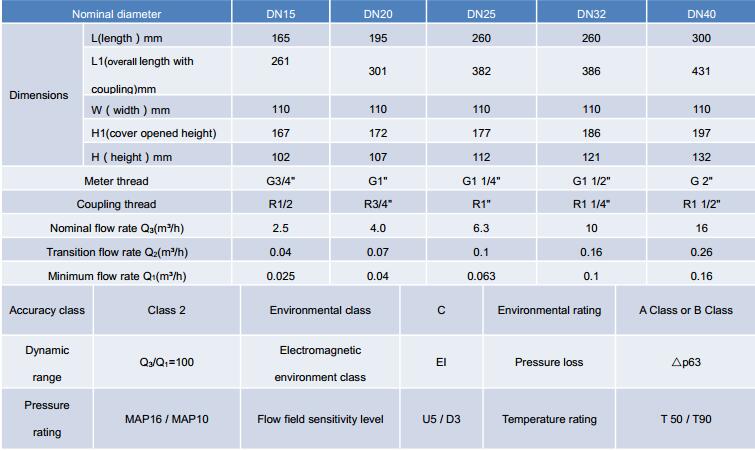

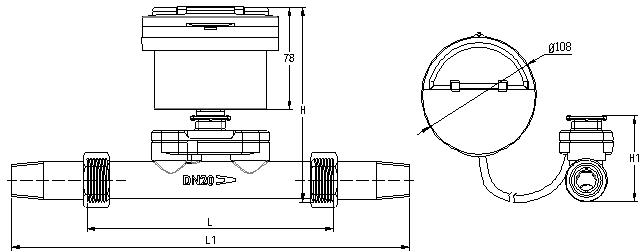

T50 Cold Water Meter DN15~DN40 Dimension

公称直径		DN15	DN20	DN25	DN32	DN40
外形尺寸	L(长）mm	165	195	225	260	245
	L1(加接管总长)mm	261	301	347	386	376
	W（宽）mm	110	110	110	110	110
	H1（打开翻盖高度）mm	167	172	177	186	197
	H（高）mm	102	107	112	121	132

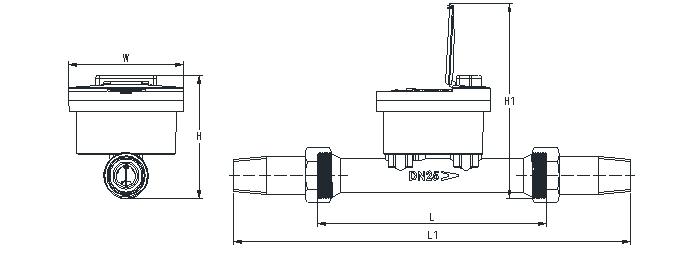

T90 Hot Water Meter DN15~DN40 Dimension

公称直径		DN15	DN20	DN25	DN32	DN40
外形尺寸	L(长）mm	165	195	225	260	245
	L1(加接管总长)mm	261	301	347	386	376
	H（总高）mm	138	143	148	157	168
	H1（管段高）mm	60	65	70	79	90

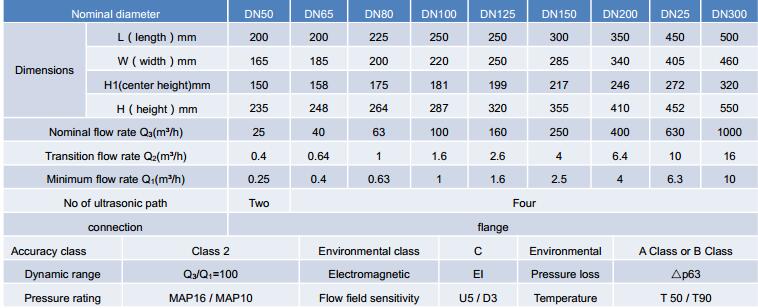

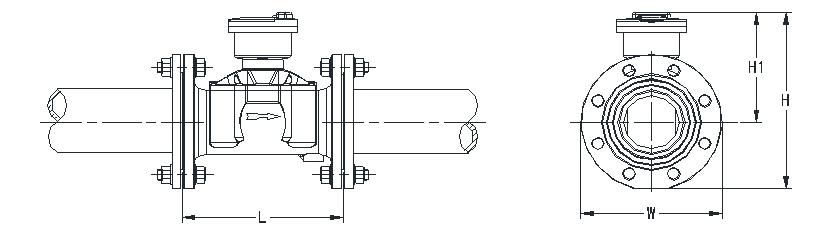

T50 Cold Water Meter DN50~DN300 Dimension

公称直径		DN50	DN65	DN80	DN100	DN125	DN150	DN200	DN250	DN300
外形尺寸	L（长）	200	200	225	250	250	300	350	450	500
	W（宽）	165	185	200	220	250	285	340	405	460
	H1(中心高)	150	158	175	181	199	217	246	272	320
	H（总高）	235	248	264	287	320	355	410	452	550

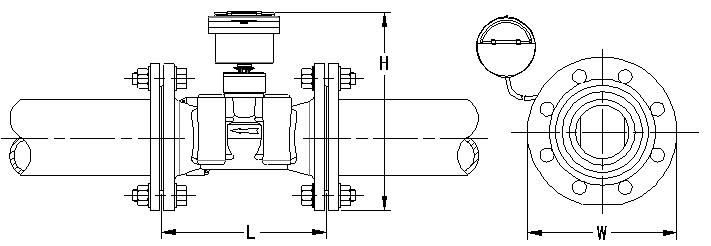

T90 Hot Water Meter DN50~DN300 Dimension

公称直径		DN50	DN65	DN80	DN100	DN125	DN150	DN200	DN250	DN300
外形尺寸	L（长）	200	200	225	250	250	300	350	450	500
	W（宽）	165	185	200	220	250	285	340	405	460
	H（总高）	266	279	295	318	351	386	441	483	581
